Evapoler 180 H Side
£10.00
Product Description
- Single-phase, various speeds and three-phase,2-speed.
- Three air discharge type (top, down, Side) can meet different installation requirements of various application.
- Using standard controller, easy to operate.
- The casing is made of high strength weather ability polymers which is UV-proof, anti-corrosion, anti-aging, and resistance to deformation.
- Using specially designed axial fan, with large airflow, low noise, low engery consumption and wide applicability.
- Using high quality aluminum housing motor, with good heat dissipation, high protection grade, waterproof, moistureproof .
- Using the automatic control of water system and open type water distributor, so water can flow smoothly and distributor is not easy to block.
- Using highly efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
Product Description
Specifications
| Specs/Model | Single Phase | 3-Phase |
|---|---|---|
| Airflow (m³/h) | 18000 | 18000 |
| Pressure (pa) | 190 | 194 |
| Output (Kw) | 1.1 | 1.1 |
| V/Hz | 220/50 | 380/50 |
| Rated Currency (A) | 5.6 | 2.0 |
| Fan Type | Axial | Axial |
| Fan Speeds | Single-phase various speed | 3-phase,2-speed |
| Noise (dBA) | ≤76 | ≤76 |
| Dimension L×W×H (mm) | 1210*1150*950 | 1210*1150*950 |
| Vent size (LxW) mm | 647*647 | 647*647 |
| Net Weight (kg) | 100 | 100 |
| Operating Weight (kg) | 130 | 130 |
| Auto Cleaning | Yes | Yes |
| Water Lack Protection | Yes | Yes |
| Water Capacity （L) | 30 | 30 |
Overview

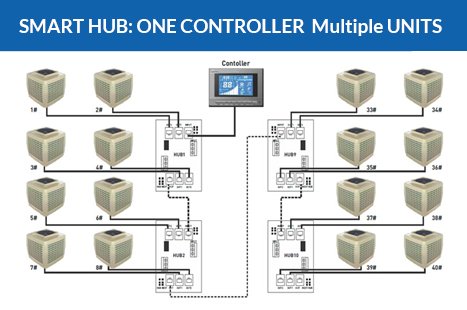

Smart Hub for Group Control . At most 40 units can be controlled with one single display controller.
Case
