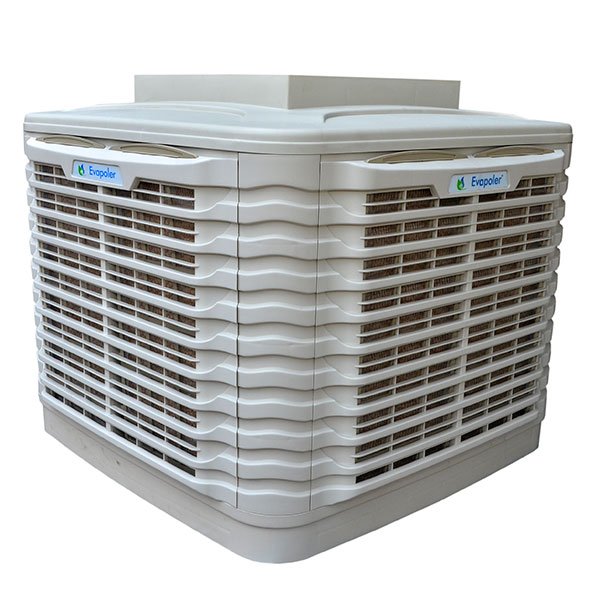

Evapoler 140 H Top

  1. Wired  Variable speed knob Controller.
  2. High-efficiency Honey Comb Cooling Pads with higher saturation levels.
  3. Variable fan speed.
  4. Non-clogging type water distributor to ensure uniform flow of water over pads.
  5. 100% copper wounded electric motor for durability and Aluminium casing to ensure fast heat dissipation.
  6. The unique design of blades offers maximum airflow & minimum noise. Made of electroplated, rust-free metal and heavy-duty industrial polypropylene.
  7. Submersible type of water pump for continuous water supply.
  8. Pre-dust filters to ensure dust-free fresh air and also prolongs the life of pads.
  9. Water Level sensor to protect the pump in case of low water levels.
  10. Auto clean drain valve to ensure water draining at set regular intervals to prevent scale formation and algae growth.
  11. Float valve to ensure continuous water supply and maintain a set water level.
  12. Uv-stabilized weather resistant and high strength polymer casing for longer life.

Description

Specifications

Specs/ModelEvapoler 180 H Top
Airflow (m³/h)14000
Pressure (pa)160
Output (Kw)0.75
Voltage/Frequency220V/50 Hz
Rated Currency (A)5.6
Fan TypeAxial
Fan SpeedsSingle-phase Multi speed
Noise (dBA)≤75
Dimension L×W×H (mm)1030*1030*880
Vent size (LxW) mm545*545
Net Weight (kg)49
Operating Weight (kg)80
Auto CleaningYes
Low Water  ProtectionYes

Overview

Product Overview :

  1. Air-duct
  2. Cooling Pad
  3. Side Panel
  4. Drain Valve
  5. Water Inlet Valve
  6. Fan
  7. Fan Motor
  8. Water Distributor
  9. Motor Post
  10. Post
  11. Main Control Box
  12. Circulation Pump
  13. Pipe

Installation

indirect evaporative cooler
Ducting Air Cooler
