Evapoler 180 H Side
- Single-phase, various speeds and three-phase,2-speed.
- Three air discharge type (top, down, Side) can meet different installation requirements of various application.
- Using standard controller, easy to operate.
- The casing is made of high strength weather ability polymers which is UV-proof, anti-corrosion, anti-aging, and resistance to deformation.
- Using specially designed axial fan, with large airflow, low noise, low engery consumption and wide applicability.
- Using high quality aluminum housing motor, with good heat dissipation, high protection grade, waterproof, moistureproof .
- Using the automatic control of water system and open type water distributor, so water can flow smoothly and distributor is not easy to block.
- Using highly efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
|Rated Currency (A)||5.6||2.0|
|Fan Speeds||Single-phase various speed||3-phase,2-speed|
|Dimension L×W×H (mm)||1210*1150*950||1210*1150*950|
|Vent size (LxW) mm||647*647||647*647|
|Net Weight (kg)||100||100|
|Operating Weight (kg)||130||130|
|Water Lack Protection||Yes||Yes|
|Water Capacity （L)||30||30|

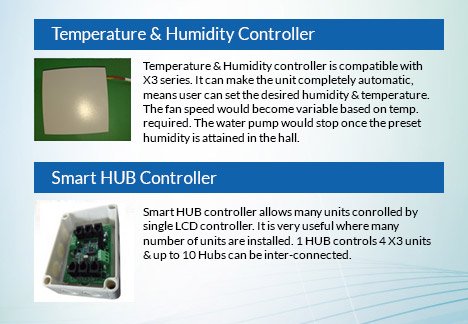

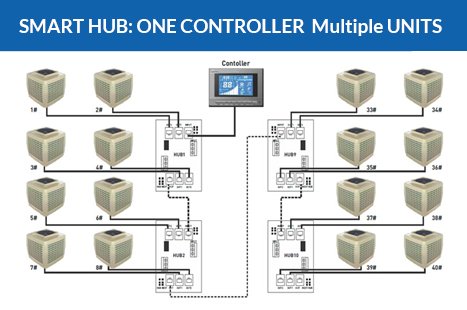

Smart Hub for Group Control . At most 40 units can be controlled with one single display controller.
