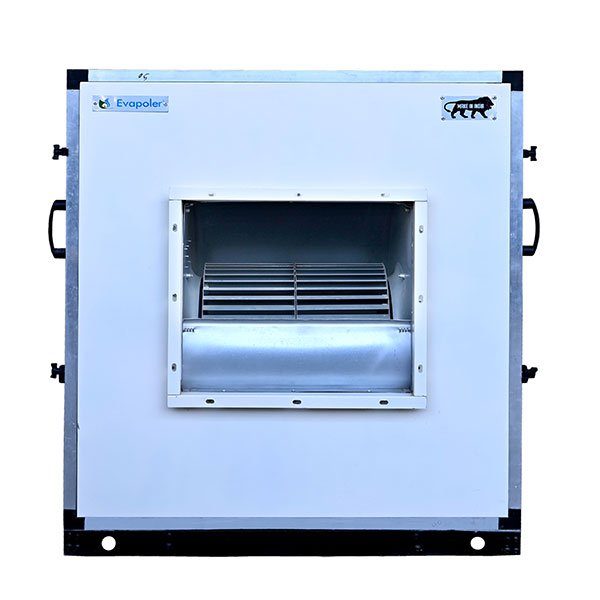

EVAPORATIVE COOLERS (EVA 500-HS)

Benefits :

  • Evaporative Coolers Improves indoor air quality by removing dust, fumes & odours.
  • Evaporative coolers Improves productivity in industries through 100% fresh, clean & cool air.
  • Low Capex &Opex.
  • Evaporative air cooler are Cost Effective and Energy Efficient.
  • Consumes upto 80% less electricity than refrigerated air conditioning.
  • Green & Sustainable Evaporative Technology.

Product Features :

  1. High static air pressure and long distance air delivery.
  2. Robust wired Remote controller.
  3. In-built single phase preventer ,short circuit and overload protection.
  4. High efficiency Honey Comb Cooling Pads for better cooling
  5. Heavy duty Submersible type water pump for continuous water supply.
  6. Evaporative coolers have Rust free Stainless steel tank of large capacity
  7. Non-clogging type water distributor to ensure uniform flow of water over pads.
  8. 100% copper wounded electric motor for durability and Aluminium casing to ensure fast heat dissipation.
  9. Industrial Air coolers manufactured with AMCA Certified Forward curved DIDW Centrifugal Fan.
  10. Easy to Operate and Maintain.
  11. Pre-dust filters to ensure dust free fresh air and longer life of pads.
  12. Float valve to ensure continuous water supply and maintain set water level.

Customisable to variable speed and to any capacity upto100000 CFM

Description

Specifications

Specs/Model EVA – 500-HS
Airflow (CMH) 50000
Air Flow (CFM) 30000
Static Pressure (mmwg) 40
Power (kw/HP) 11.0
Power Resource (V/Hz) 415/50
Fan Type Centrifugal Blower
Fan Type Blower
Fan Speed 3-phase, single-speed
Vent Size (L x W) mm 1010*1010
Noise (dBA) ≤ 70
Back Pad Size (L x H x W) 800 X 1750 X 100 (2 Nos.)
Side Pad Size (L x H x W) 600 X 1750 X 100 (2 Nos.)
Dimension (L x W x H) 1970 X 2150 X 2270
Net Weight (KG) 430 KGS
Operating Weight (KG) 980 KGS
Intelligent Clean No
Low water sensor Protection Yes
Controller Wired Remote
Pre-Dust Filter YES
Tank Capacity (Litre) 550
Evaporation Efficiency 85%

The air conditioners are expensive and consume a lot of power. The running cost is very high.

Evaporative air coolers have 80-90% less power consumption than air conditioning, gives 100% fresh ,clean and healthy air.The air conditioners recirculate the same stale air in most of the cases where no attention is paid to fresh air requirements as per ASHRAE or ISHRAE standards.

The evaporative cooling system is most feasible solution for large industrial spaces ,ware houses and factories to reduce the energy cost by 80%. It also helps to improve employee productivity because they can work in comfortable environment with fresh and clean atmosphere. The evaporative cooler is easy to install, it has low maintenance cost as well as long life span (more than 5 years). We offer different models according to your needs such as Industrial commercial & residential use.

For dry and high temperature zones -the evaporative cooling system is most preferable and affordable cooling option.We provide customized solutions at affordable price range.
