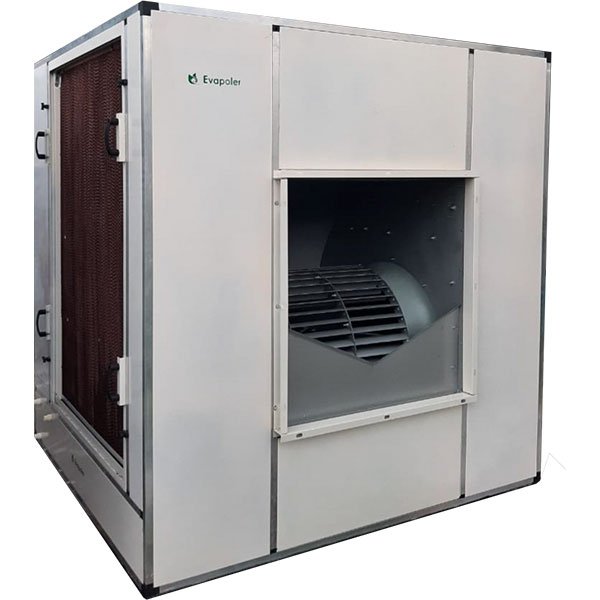

EVA 340-HS

Benefits :

  • Industrial Air Coolers Improves indoor air quality by removing dust, fumes & odours.
  • Improves productivity in industries through 100% fresh, clean & cool air.
  • Low Capex &Opex.
  • Industrial air coolers are Cost Effective and Energy Efficient.
  • Consumes upto 80% less electricity than refrigerated air conditioning.
  • Green & Sustainable Evaporative Technology.
  • Strong protection from electric faults.



  1. High static air pressure and long distance air delivery .
  2. Robust wired Remote controller .
  3. In-built single phase preventer ,short circuit and overload protection.
  4. High efficiency Honey Comb Cooling Pads with higher saturation levels.
  5. Heavy duty Submersible type water pump for continuous water supply.
  6. Industrial air coolers have Rust free Stainless steel tank of large capacity
  7. Non-clogging type water distributor to ensure uniform flow of water over pads.
  8. 100% copper wounded electric motor for durability and Aluminium casing to ensure fast heat dissipation.
  9. Industrial Air coolers manufactured with AMCA Certified Forward curved DIDW Centrifugal Fan.
  10. Easy to Operate and Maintain.
  11. Pre-dust filters to ensure dust free fresh air and longer life of pads.
  12. Float valve to ensure continuous water supply and maintain set water level.
  13. Powder Coated GP sheet strong cabinet
  14. Customisable to variable speed and to any capacity upto125000 CFM


Discharge Type Side
Airflow (m³/hr) CMH 34000
Airflow (ft³/min) CFM 20000
*Area Coverage (SFT) 4000
Static Pressure (mmwg) 40
Power (kw) 7.5
Power Resource (V/Hz) 415/50
Fan Type Centrifugal Blower
Fan Speeds 3-Phase, Single Speed
Vent Size (L x W) mm 900 X 900
Noise (dBA) ≤ 70
Back Pad Size(L x H x W) 770 X 1530 X 100 (2 Nos.)
Side Pad Size(L x H x W) 620 X 1530 X 100 (2 Nos.)
Dimension(L x W x H) (1850 X 2100 X 2150) ±100
Net Weight (KG) 435
Operation Weight (KG) 835
Low Water Sensor
Controller Wired Remote
Pre-Dust Filter
Tank Capacity (Litre) 400
Evaporation Efficiency 85%

Additional information


Direct Evaporative Cooling, Indirect Evaporative Cooling, Industrial Ductable Cooler, Industrial Portable Cooling, Residential & Commercial
