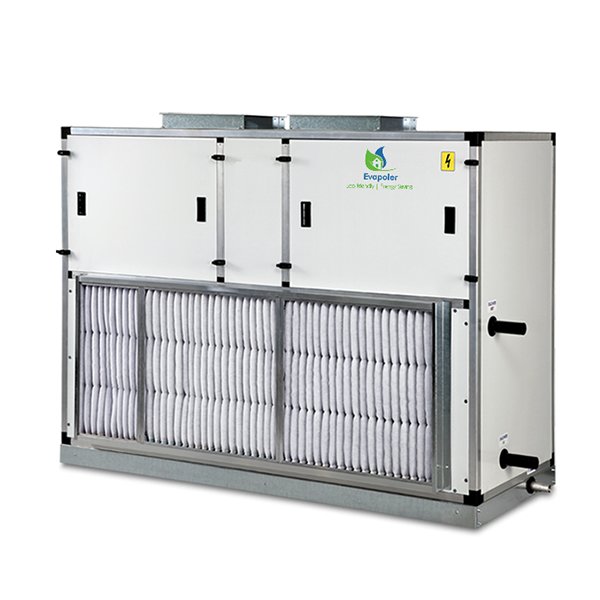

Vertical Type AHU

Benefits :

  • Less Foot Print
  • Compact Design
  • High Cooling Performance
  • Energy Efficient



Product Features :

  1. Energy Efficient IE2/ IE3 ,IP -55 protection Electric Motors
  2. High efficiency AMCA certified DIDW centrifugal Fans used for best performance.
  3. Casing manufactured with Extuded aluminium profile with & without thermal break .
  4. 25mm and 50mm thick Double Skin Panel Construction
  5. Horizontal Floor Mounted AHUs are of pentapost construction with Thermal & Non-Thermal Break Profiles.
  6. Casing sheet metal thickness shall range from 0.6mm to 1.0mm as per requirement.
  7. Cabinet GP sheets shall be Pre-painted, Powder Coated & GSS
  8. Heat Exchanger coil section provided with SS drain tray
  9. High Performance cooling coil with copper tubes and aluminium fins

Capacity range : 1000 CFM to 18000 CFM

Description

Specifications

ModelCapacity
(CFM)
Fan
(Model)
Coil Area
(Sqft)
Length
(MM)
Width
(MM)
Height
(MM)

EVA-VT-10

1000

7˝X7˝X1

2.0

575

775

1150

EVA-VT-15

1500

9˝X9˝X1

3.0

650

900

1325

EVA-VT-20

2000

10˝X10˝X1

4.0

700

1000

1500

EVA-VT-25

2500

12˝X12˝X1

5.0

800

1100

1550

EVA-VT-30

3000

12˝X12˝X1

6.0

800

1225

1575

EVA-VT-35

3500

15˝X15˝X1

7.0

875

1325

1750

EVA-VT-40

4000

15˝X15˝X1

8.0

875

1400

1750

EVA-VT-45

4500

18˝X18˝X1

9.0

1000

1625

2000

EVA-VT-50

5000

18˝X18˝X1

10.0

1000

1625

2000

EVA-VT-60

6000

450 X1

12.0

1100

1600

2250

EVA-VT-70

7000

450X1

14.0

1100

1600

2350

EVA-VT-80

8000

500X1

16.0

1200

1800

2425
